KXZRE2 series
KXZRE2 series

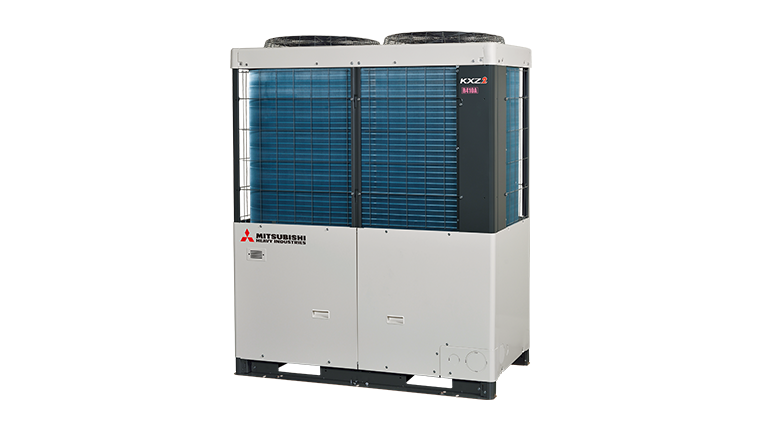

The KXZRE2 series of 3 pipe VRF systems offer high performance and high energy efficiencies in both heating and cooling modes with a max COP of 9.0. These units employ DC inverter multiport compressors with concentrated winding motor and boast an industry leading total piping length of 1000m. Their 3 pipe design allows them to run either heating or cooling at the same time.
POWER: Three Phase | AVAILABLE IN: 3 Pipe
CAPACITIES: 22.4kW – 150.0kW
Key features
- High performance and energy efficiencies
- Connect up to 80 indoor units / up to 200% connection capacity on some models
- Total piping length up to 1000m
- Improved refrigerant distribution
- Blue Fin technology for improved corrosion resistance
Single outdoor unit
Two outdoor units combinations
Three outdoor units combinations
| Model | kW | Max no. connectable I.U. | Maximum Connection Capacity (%) |
|---|---|---|---|
| FDC224KXZRE2 | 22.4 | 29 | 200 |
| FDC280KXZRE2 | 28.0 | 37 | 200 |
| FDC335KXZRE2 | 33.5 | 44 | 200 |
| FDC400KXZRE2 | 40.0 | 53 | 200 |
| FDC450KXZRE2 | 45.0 | 60 | 200 |
| FDC475KXZRE2 | 47.5 | 50 | 160 |
| FDC500KXZRE2 | 50.0 | 53 | 160 |
| Model | kW | Max no. connectable I.U. | Maximum Connection Capacity (%) |
|---|---|---|---|
| FDC735KXZRE2 | 73.5 | 78 | 160 |
| FDC800KXZRE2 | 80.0 | 80 | 160 |
| FDC850KXZRE2 | 85.0 | 80 | 160 |
| FDC900KXZRE2 | 90 | 80 | 160 |
| FDC950KXZRE2 | 95 | 80 | 160 |
| FDC1000KXZRE2 | 100 | 80 | 130 |
| Model | kW | Max no. connectable I.U. | Maximum Connection Capacity (%) |
|---|---|---|---|
| FDC1200KXZRE2 | 120 | 80 | 130 |
| FDC1250KXZRE2 | 125 | 80 | 130 |
| FDC1300KXZRE2 | 130 | 80 | 130 |
| FDC1350KXZRE2 | 135 | 80 | 130 |
| FDC1425KXZRE2 | 142.5 | 80 | 130 |
| FDC1450KXZRE2 | 145 | 80 | 130 |
| FDC1500KXZRE2 | 150 | 80 | 130 |
Ceiling Cassette
Ducted
Wall Mounted
Ceiling Suspended
Floor Standing
OA Processing Unit
 | 4way | FDT | Capacity kW 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
|---|---|---|---|
 | 4way Compact | FDTC | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 |
 | 2way | FDTW | Capacity kW 2.8 4.5 5.6 7.1 9.0 11.2 14 |
 | 1way | FDTS | Capacity kW 4.5 7.1 |
 | 1 way Compact | FDTQ | Capacity kW 2.2 2.8 3.6 |
 | High Static Pressure | FDU | Capacity kW 4.5 5.6 7.1 9.0 11.2 14 16 22.4 28 |
|---|---|---|---|
 | Low/Middle Static Pressure | FDUM | Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
 | Low Static Pressure (thin) | FDUT | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 7.1 |
 | Compact & Flexible | FDUH | Capacity kW 2.2 2.8 3.6 |
 | FDK | Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 |
|---|
 | FDE | Capacity kW 3.6 4.5 5.6 7.1 11.2 14 |
|---|
 | 2way | FDFW | Capacity kW 2.8 4.5 5.6 |
|---|---|---|---|
 | with casing | FDFL | Capacity kW 7.1 |
 | without casing | FDFU | Capacity kW 2.8 4.5 5.6 7.1 |
 | FDU-F | Capacity kW 9.0 14 22.4 28 |
|---|
