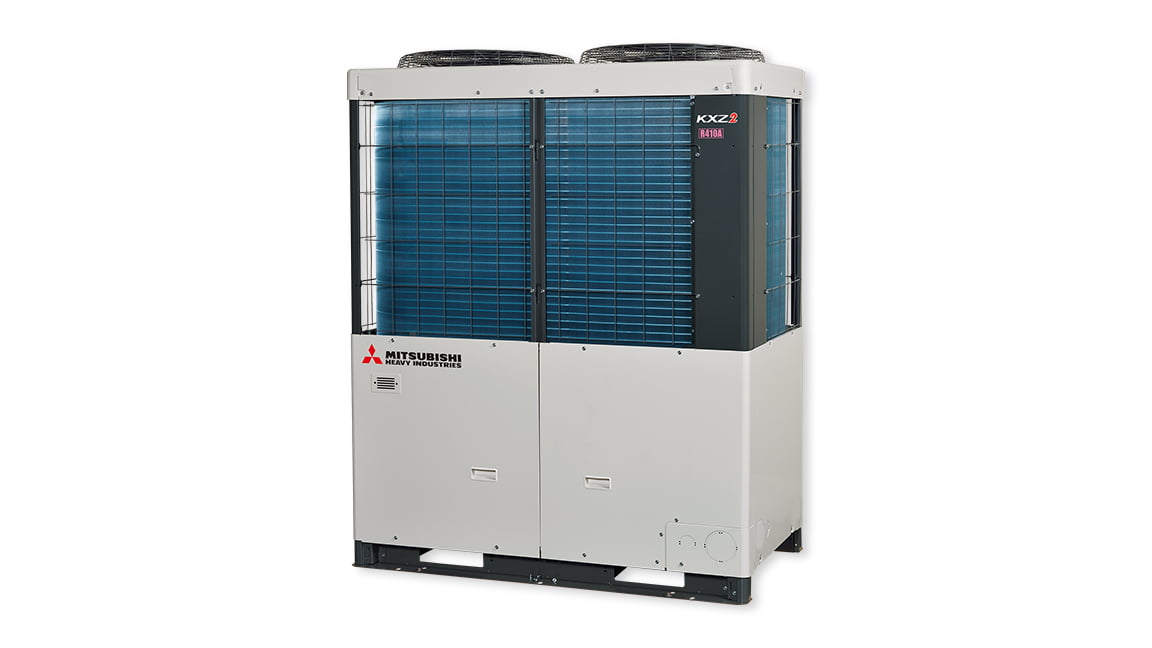

KXZXE2 Series
KXZXE2 Series
The KXZXE2 series of high-COP VRF systems offer high performance and high energy efficiencies with an EER up to 3.86. These units employ DC inverter multiport compressors with concentrated winding motor and boast an industry leading total piping length of 1000m.
POWER: Three Phase |Â AVAILABLE IN: 2 Pipe
CAPACITIES: 56.0kW – 113.5kW
Key features
- High performance and energy efficiencies
- Connect up to 80 indoor units / up to 130-160% connection capacity
- Total piping length up to 1000m
- Improved refrigerant distribution
- Blue Fin technology for improved corrosion resistance
Model Line-Up
| Model | kW | Max no. connectable I.U. | Maximum Connection Capacity (%) |
|---|---|---|---|
| FDC560KXZXE2 | 56.0 | 59 | 160 |
| FDC850KXZXE2 | 85.0 | 80 | 160 |
| FDC900KXZXE2 | 90.0 | 80 | 160 |
| FDC950KXZXE2 | 95.0 | 80 | 160 |
| FDC1000KXZXE2 | 100.0 | 80 | 130 |
| FDC1060KXZXE2 | 107.0 | 80 | 130 |
| FDC1120KXZXE2 | 113.5 | 80 | 130 |
Ceiling Cassette
Ducted
Wall Mounted
Ceiling Suspended
Floor Standing
OA Processing Unit
 | 4way | FDT | Capacity kW 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
|---|---|---|---|
 | 4way Compact | FDTC | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 |
 | 2way | FDTW | Capacity kW 2.8 4.5 5.6 7.1 9.0 11.2 14 |
 | 1way | FDTS | Capacity kW 4.5 7.1 |
 | 1way Compact | FDTQ | Capacity kW 2.2 2.8 3.6 |
 | High Static Pressure | FDU | Capacity kW 4.5 5.6 7.1 9.0 11.2 14 16 22.4 28 |
|---|---|---|---|
 | Low/Middle Static Pressure | FDUM | Capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14 16 |
 | Low Static Pressure (thin) | FDUT | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 |
 | Compact & Flexible | FDUH | Capacity kW 2.2 2.8 3.6 |
 | FDK | Capacity kW 1.5 2.2 2.8 3.6 4.5 5.6 7.1 9.0 |
|---|
 | FDE | Capacity kW 3.6 4.5 5.6 7.1 11.2 14 |
|---|
 | 2way | FDFW | Capacity kW 2.8 4.5 5.6 |
|---|---|---|---|
 | with casing | FDFL | Capacity kW 7.1 |
 | without casing | FDFU | Capacity kW 2.8 4.5 5.6 7.1 |
 | FDU-F | Capacity kW 9.0 14 22.4 28 |
|---|
